THE-RS6 C5 4.2 V8 Tubular Upgrade Exhaust Manifolds
Our manifolds are exclusively manufactured from 1.4828 heat-resistant stainless steel pipes.
In contrast to conventional stainless steel, the 1.4828 stands out with a minor thermal expansion, high tensile strength and scaling resistance when temperatures are high.

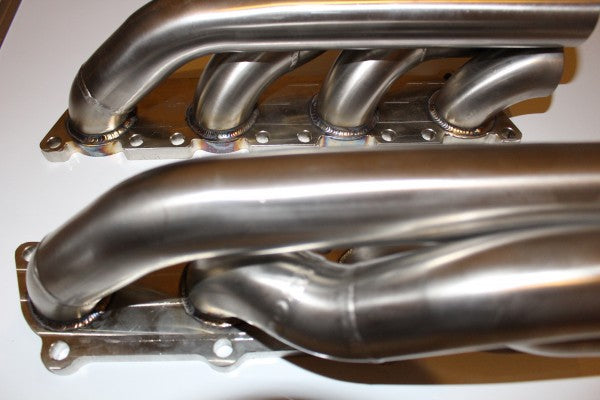

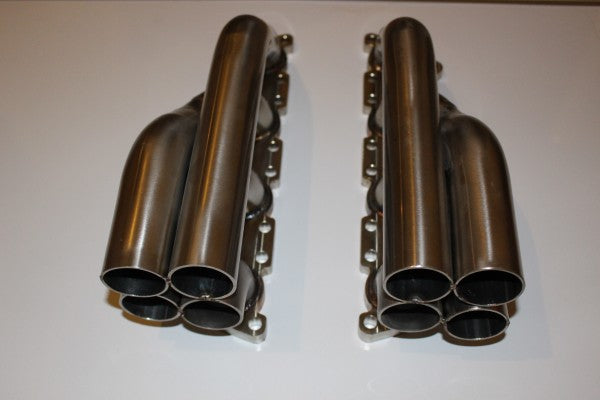

Manifolds which merge from 4 pipes into one with a laser-cut collector.
External diameters are 42,3x2mm and 48,4x2mm.

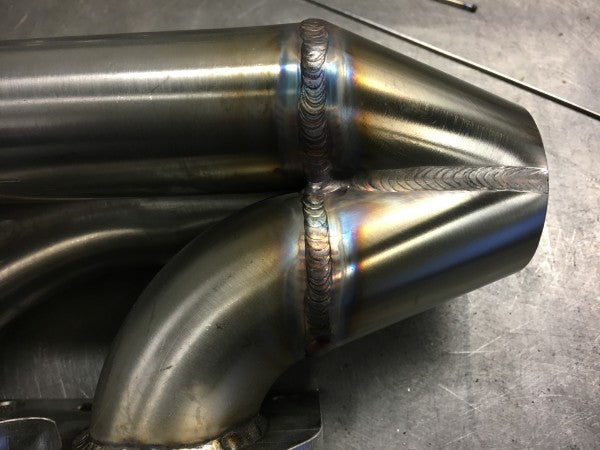

The manifolds are welded with TIG back-purged.

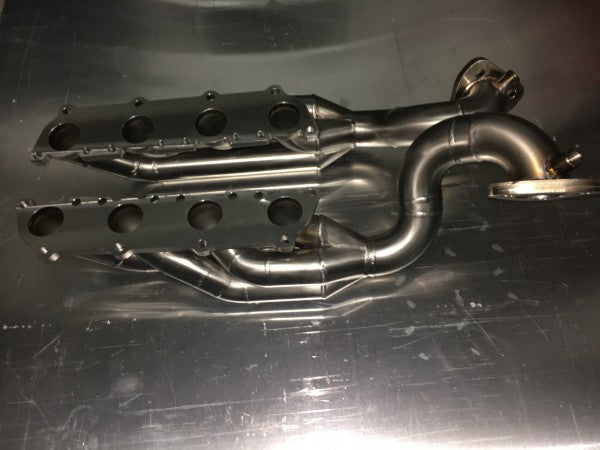

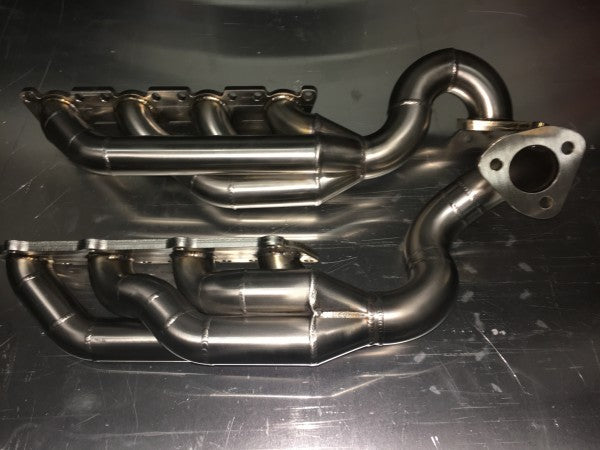

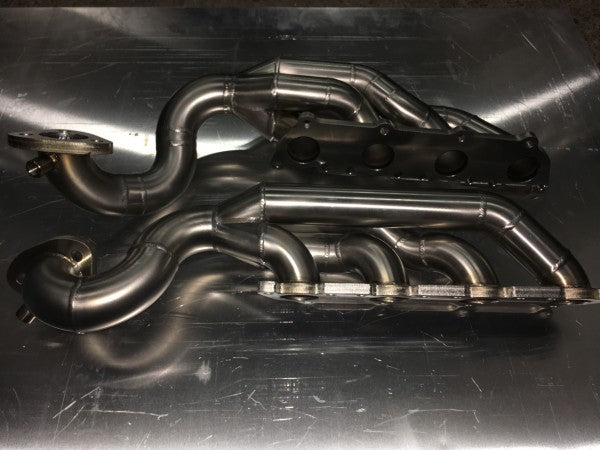

This manifold has a K04 Flange. We also offer others on request.
The flange plate to the cylinder head is face milled after welding.
K04 Turbocharger is in the original position. PLUG &PLAY
With these manifolds and appropriate surrounding performance of over 1000 hp is possible.
We have chosen the pipe layout in a way that we can always use an entire pipe bend which means no cross-section constriction. Because of this we also removed (useless) secondary air valves.
